AM5 CPU Support – Compatible with AMD Ryzen 9000, 8000 & 7000 Series processors on ATX form factor.
High-Speed Memory & Expansion – 4 RAM slots (up to 256GB DDR5, 8200+ MHz), 2x PCIe 4.0 x16 with steel armor, and PCIe x1 slot.
Advanced Storage Options – Dual M.2 slots (Gen5 + Gen4), 4x SATA 6G with RAID 0/1/10 support, and M.2 Shield Frozr heatsink.
Comprehensive Connectivity – USB 3.2 Gen2 Type-C, HDMI 2.1, DisplayPort 1.4, multiple USB Gen1/Gen2/2.0 ports, and internal headers.
Networking & Wireless – Realtek 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3 for fast and reliable connections.
Enhanced Audio & Power Design – Realtek ALC987 7.1 HD audio with Audio Boost, 12+2+1 digital power phases, and 6-layer PCB.
Brand: MSI |
Quantity
cash on delivery / phone Pay
2 to 3 days Days
Shipping Price : NPR. 100/kgwithin 7 days days easy return Change of mind is not applicable
| CPU SUPPORT | Supports AMD Ryzen™ 9000, 8000 Series, 7000 Series Desktop Processors Socket AM5 |
| CHIPSET | AMD B650 |
| MEMORY (RAM) |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| ONBOARD GRAPHICS |
1x HDMI™ Support HDMI 2.1 with HDR, maximum resolution of 4K @ 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics |
| EXPANSION SLOTS |
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset |
| MULTI-GPU | N/A |
| STORAGE |
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| RAID | Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E, Supports Bluetooth® 5.3 |
| USB | 4x USB 2.0 (Internal) 4x USB 3.2 Gen 1 5Gbps Type-A (Back) 2x USB 3.2 Gen 1 5Gbps Type-A (Internal) 3x USB 3.2 Gen 2 10Gbps Type-A (Back) 1x USB 3.2 Gen 2 10Gbps Type-C (Internal) 1x USB 3.2 Gen2x2 20Gbps Type-C (Back) |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |

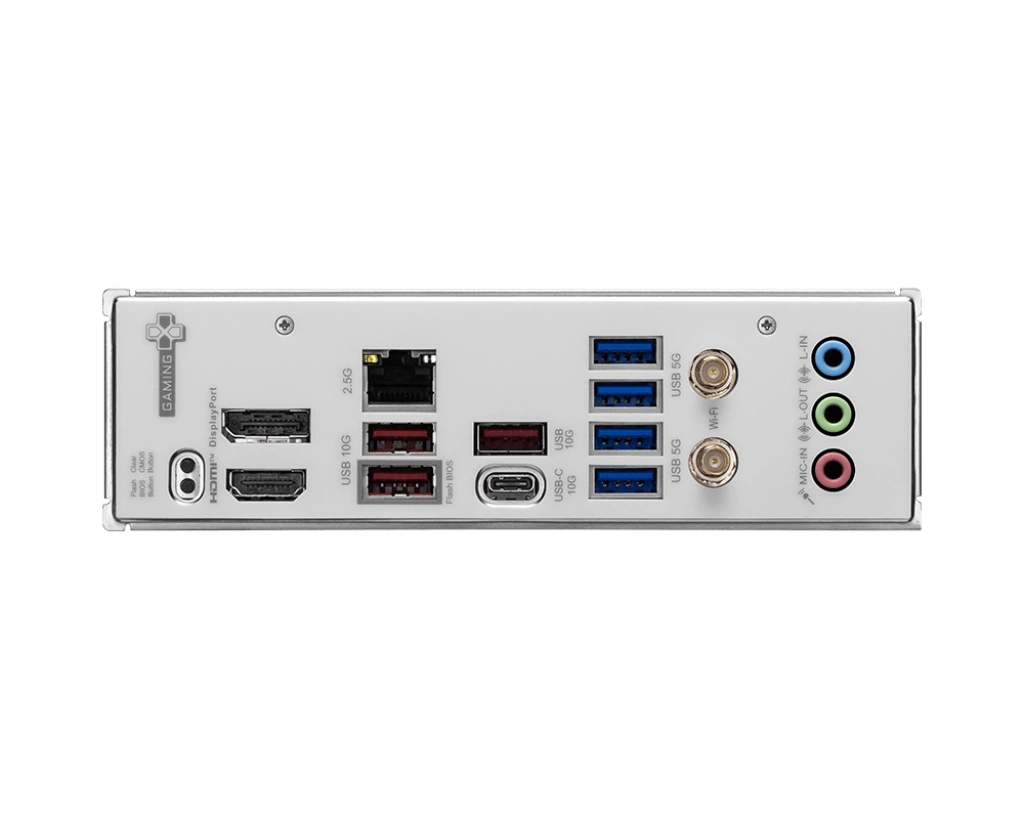

| BACK I / O PORTS | 1x DisplayPort 1.4 3x USB 3.2 Gen 2 10Gbps (Type-A) 4x USB 3.2 Gen 1 5Gbps (Type-A) 1x 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button 1x HDMI™ 2.1 1x USB 3.2 Gen 2 10Gbps (Type-C) |
| LED FEATURE | 3x ARGB LED Connector 1x RGB LED connectors 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX 304.8mm x 243.84mm |
