| CPU SUPPORT | Supports AMD Ryzen™ 5000 Series, 4000 Series and 3000 Series, 2000 Series desktop processors Supports Socket AM4 |
| CHIPSET | AMD X570 |
| MEMORY (RAM) | 4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen™ 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| ONBOARD GRAPHICS | 1x HDMI™ 2.1 port, supports a maximum resolution of 4K @ 60Hz *Available only on processors featuring integrated graphics |
| EXPANSION SLOTS | Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| MULTI-GPU | Supports AMD CrossFire™ Technology |
| STORAGE | 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices 6x SATA 6Gb/s ports (From X570 chipset) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN Controller 1x Realtek® RTL8111H 1Gbps LAN Controller |
| WIRELESS / BLUETOOTH | N/A |
| USB | 2x USB 2.0 (Back) 4x USB 2.0 (Internal) 4x USB 3.2 Gen 1 5Gbps Type-A (Back) 4x USB 3.2 Gen 1 5Gbps Type-A (Internal) 3x USB 3.2 Gen 2 10Gbps Type-A (Back) 1x USB 3.2 Gen 2 10Gbps Type-A (Back) 1x USB 3.2 Gen 2 10 Gbps Type-C (Back) 1x USB 3.2 Gen 2 10Gbps Type-C (Internal) |
| AUDIO | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |

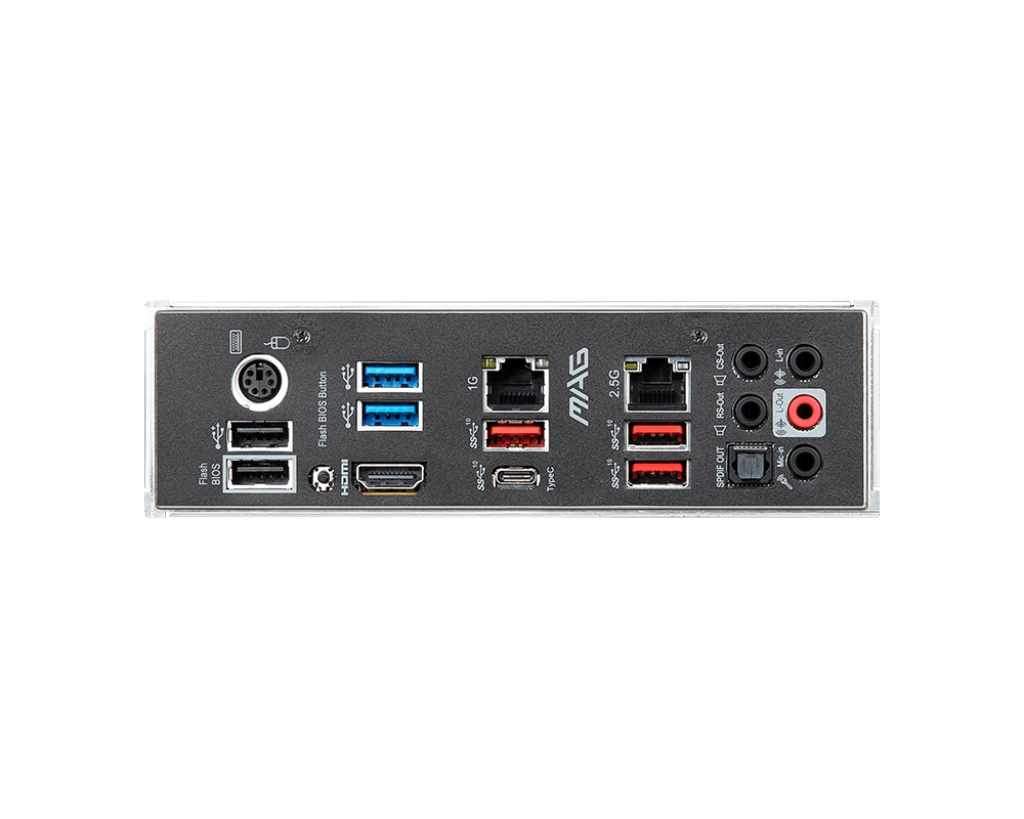

| BACK I / O PORTS | 1x PS/2 Port 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x 1G LAN Port 1x 2.5G LAN Port HD Audio Connectors 2x USB 2.0 Port Flash BIOS Button 1x HDMI™ 2.1 Port 1x USB 3.2 Gen 2 10Gbps (Type-C) 3x USB 3.2 Gen 2 10Gbps (Type-A) Optical S/PDIF OUT |
| LED FEATURE | 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED 1X EZ LED Control switch |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX 305.mm x 244mm |
