Brand: MSI |
Quantity
cash on delivery
2 to 3 days Days
Shipping Price : NPR. 100/kgwithin 7 days days easy return Change of mind is not applicable
| CPU SUPPORT | Supports 14th, 13th & 12th Gen Intel® Core™ Processors for LGA 1700 Socket |
| CHIPSET | Intel® Z790 |
| MEMORY (RAM) |
4x DDR5 UDIMM, Maximum Memory Capacity 192GB Supports Intel® XMP3.0 OC |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K @ 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K @ 60Hz* *Available only on processors featuring integrated graphics. |
| EXPANSION SLOTS | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| MULTI-GPU | - |
| STORAGE | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6Gb/s |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices *SATA_A1_A2 do not support RAID function. |
| LAN | 1x Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | 1x Intel® 2.5Gbps LAN |
| USB | 4x USB 2.0 (Back) 4x USB 2.0 (Internal) 2x USB 3.2 Gen 1 5Gbps Type-A (Back) 4x USB 3.2 Gen 1 5Gbps Type-A (Internal) 1x USB 3.2 Gen 2 10Gbps Type-A (Back) 1x USB 3.2 Gen 2 10Gbps Type-C (Internal) 1x USB 3.2 Gen 2x2 20Gbps Type-C (Back) |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |

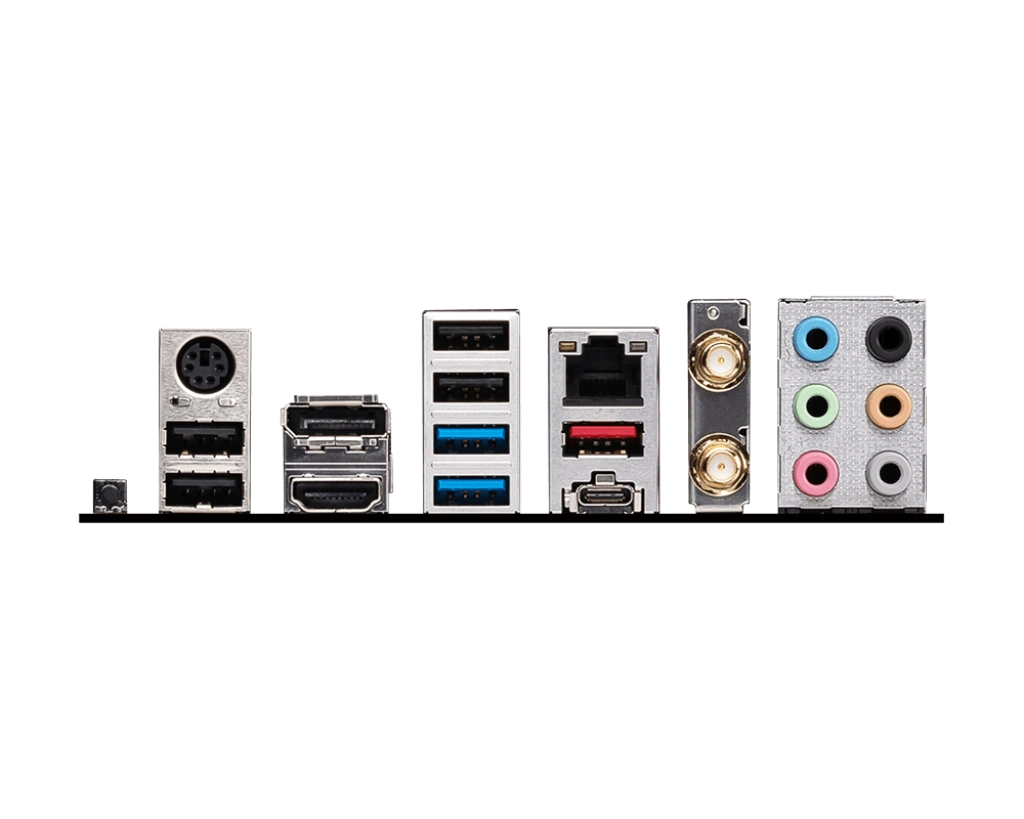

| BACK I / O PORTS |
1x PS/2 Port |
| LED FEATURE | 4x EZ Debug LED 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX 304.8mm x 243.84mm |
