Camera
- 4K Dual Lens PTZ Conferencing Camera
- Sony 4K EXMOR, crystal clear in any lighting 8MP
- 24X Zoom*: 12X optical; 2X digital zoom
- Frame rates: (16:9): 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps
- Wide field of view (D/H/V): 85°/ 76°/ 46°
- Lens focal length: 3.9mm (wide) ~ 47.3mm (tele), Lens F#: 1.8 (wide) ~ 2.8 (tele)
- Auto focus distance: Mininum 1.5 meter
- 3rd party audio tracking support: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yahama) via AVer Preset Link function (PTZApp 2 on PC)
- Simultaneous 3-way output: USB 3.1 (4K@30fps), HDMI (1080p@60fps) and IP connections
- Touchless Gesture control: Turn on/off the tracking function, zoom in/out provides intuitive camera controls (Built-in AI gesture recognition eliminates touchpoints)
- Picture-in-Picture Displays: 24X Total zoom and a second AI lens to provide a panoramic view (speaker view and wide-angle view)
- Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically re-frame all participants.
- Preset framing tracks both preset area and speaker (wiithin AI len's view)
- SmarGallery: Automatically crop participant’s face or body and display in equal individual feeds.
- SmartFrame: Automatically adjustment to fit all participants
- True WDR: automatically refining highlights, shadows, and white balance
- Image Mirror, flip, AE, white balance: Auto/Manual override via PTZApp 2
- Motorized Movement: Pan: 340° (±170°), Tilt: +90° (up) -30° (down)
- Fast and quiet pan/tilt movement
Secondary Lens (AI Lens)
- Image sensor: Sony 4K EXMOR
- Frame rates and resolution set according to PTZ lens settings
- Wide field of view (D/H/V): 95° / 78°/ 50°
Control
- 10 camera presets (via remote control)
- IR Remote Control, VISCA/pelco P/pelco D via RS232 (128 preset points via), Browser IP access via Chrome*, PTZApp 2 Support
Connectivity

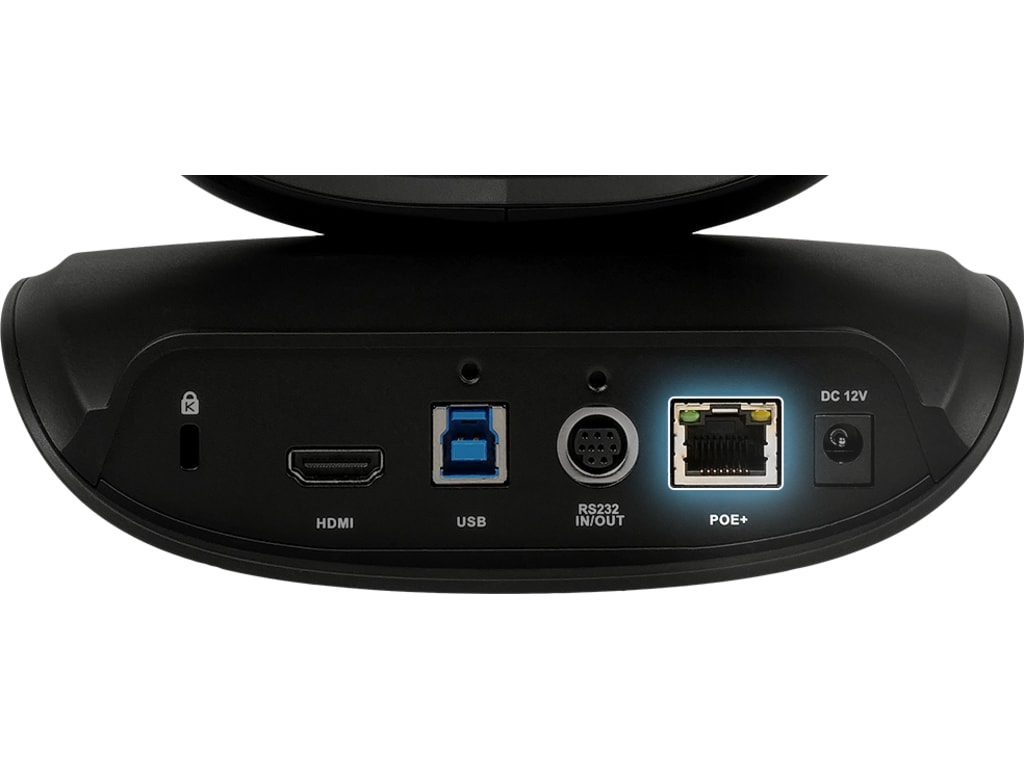

- 1x USB 3.1 Type-B, 1x RS232 In/Out, 1x HDMI Out, 1x RJ45 PoE, 12V/2A DC Jack Power Adapter (Camera)
Application / System Requirements
- PTZApp 2 for Control Camera, Enable Skype, adjust the camera image, EZLive for live streaming, image capturing, annotating snapshot & video recording
- Intel Core i5-4460 or Later / 4GB RAM, Windows 7 or Later/ Mas OS 10.14 or Later/ Chromebpx 3 Version 94.0.1606.114 or Later???????
