Camera
- Full HD PTZ Conferencing Camera
- Sony super-low-light 8M pixel sensor, clear and natural imaging in low-light conditions
- Zoom: 36X* total zoom (12X optical zoom)
- Frame rates: (16:9): 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps
- Wide field of view (D/H/V): 80.5°/ 72.8°/ 44.1°
- Lens focal length: 3.9mm (wide) ~ 46.8mm (tele), Lens F#: 1.6 (wide) ~ 2.8 (tele)
- Auto focus distance: Mininum 1 meter
- Simultaneous 3-way output: USB 3.1 (1080p@30fps), HDMI (1080p@60fps) and IP connections
- Preset Framing: Follow the presenter based on preset areas
- SmarGallery: Automatically crop participant’s face or body and display in equal individual feeds.
- SmartFrame: Automatically adjustment to fit all participants (Up to 7m)
- True WDR: automatically refining highlights, shadows, and white balance
- People-counting API: Enterprises and third-party software providers can obtain people-counting data for a better understanding of meeting space usage
- Image Mirror, Flip, AE, white balance: Auto/Manual override via PTZApp 2
- Motorized Movement: Pan: (340°) ±170°, Tilt: +90° (up) -30° (down)
- Fast and quiet pan/tilt movement
Speakerphone
- Full duplex echo cancellation, Advanced noise suppression (background noise)
- Two omnidirectional microphones support 360° pickup
- Speaker volume: 6W, adjustable to 90 dB SPL at 0.5 m
- Touch controls for volume down/up, mute, phone input, call, and hang up
- Can bridge phone-in and USB into one call
- 1x 3.5mm Phone In, 1x Line-Out,
- Up to 4 additional Microphone or 2 Speakerphone (cable up to 40m)
- Security: Kensington slot
Control
- 10 camera presets (via remote control)
- IR Remote Control, VISCA/pelco P/pelco D via RS232 (128 preset points via), IP access via Chrome browser*, PTZApp 2 Support
Connectivity

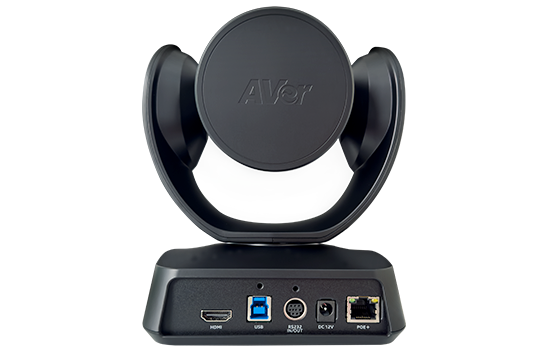

- 1x USB 3.1 Type-B, 1x RS232 In/Out, 1x HDMI Out, 1x RJ45 for IP streaming, 1x RJ45 for Speaker, 12V/5A DC Jack Power Adapter (Camera)
- 2x 3.5 mm Audio Jack, 1x RJ45 for Camera, 1x RJ45 for Expansion port, (Speakerphone)
Application Systems/ Requirements
- PTZApp 2 for Control Camera, Enable Skype, adjust the camera image, EZLive for live streaming, image capturing, annotating snapshot & video recording, EZManager 2: Camera Central Management Software
- Intel Core i5-4460 or Later / 4GB RAM, Windows 7 or Later/ Mas OS 10.14 or Later/ Chromebpx 3 Version 94.0.1606.114 or Later
